Supporting the entire

lifecycle of a system

Our Test Solutions

System
Solutions

Specific
Solutions

Electronic
Warfare

Railway
Solutions

System
Solutions

NH90 GPATE

The General Purpose Automatic Test Equipment (GPATE) is a generic test bench to test and maintain various Avionic equipment (Line Replaceable Unit = LRU).

Spherea Germany – ATEC Series 6

ATEC Series 7

The preferred maintenance solution for airlines and MROs. The ATEC can cover the major of an aircraft’s function.

Spherea Germany – ATEC

Atec Dyna

Production and troubleshooting test bench. Application area: production of electronic equipment, prototyping, development, manufacturing testing.

Spherea Germany – Endmontagelinie Flugzeug

Final Assembly Line

SPHEREA offers a computer-aided test solution for automating ground tests during the final assembly of an aircraft. The ESAO system validates the compliance of an aircraft prior to final acceptance.

Specific
Solutions

TIGSS

The Test Instrumentation Gunner Sight System (TIGSS) solution is used to support maintenance and repair activities of the OSIRIS Gunner Sight of the weapon system UH TIGER, a high performance optical system.

SPHEREA Germany – Magnettester

Test system for production

SPHEREA’s test system for incoming goods performs a continuous stress test of critical components for quality assurance in order to detect early failures of individual components.

ROPCO

Ruggedized obsolescence-free portable customer optimized tester. Etablished for the use in different NATO forces. Currently used for Tornado and C160 Transall.

SPHEREA Germany – Pluton

Pluton

Pluton, the current converter whose control with an FPGA allows real time calculations

Electronic
Warfare

VeriDAS – OnHEST

Verification of Defensive Aids System. The VeriDAS is an AGE (Aerospace Ground Equipment) for military helicopters and aircrafts useable also for VIP aircrafts. It is suitable for outdoor use and operation in harsh conditions.

SPHEREA Germany – Flight Line Tester, Deutsche Bundeswehr

Flight Line Tester

A suite of tools to simulate all threats. The Flight Line Testers are currently used for the A400M, Tiger and NH90 and are easily to adapt on other aircrafts or helicopters..

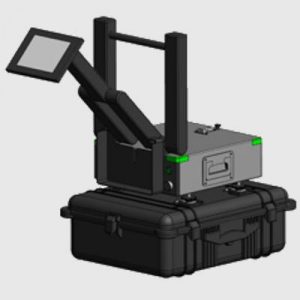

Protection Jammer Tester

Efficient and fast testing for man pack, vehicle and convoy jammer. It is suitable for outdoor use and operation in harsh conditions.

RF-Cabel tester

SPHEREA tests the RF-cables which are installed in the aircraft to prove their functionality and specified parameters.

TRE Plus

The test system TRE Plus is used for maintenance of the airborne radar jammer TSPJ at customer site as well as in industry.

Railway
Solutions

TwinTrain-Real Time

The tool for experts to investigate unresolved issues on the moving train. SPHEREA offers a full service including an expert for this purpose.

TwinTrain-MultiBrake

SPHEREA’s TwinTrain-MultiBrake makes it possible to test the brakes on all bogies simultaneously. The operator has a permanent view of all pressure values and can immediately determine their effect in the settings.

TwinTrain-Move

The TwinTrain-Move of SPHEREA tests all electronic components and antennas installed in the bogie.

TwinTrain-Traction

The multiple traction test system TwinTrain-Traction of SPHEREA can replace the additional test vehicle by simulating it at the coupler.

TwinTrain-Single Car

With the TwinTrain-Single Car parts of the vehicle or a single car can be tested and put into operation directly after completion – regardless of the availability of the other vehicle components or the entire train.

TwinTrain-Workshop

Standard test solution for all electronic train components and systems with a measurable effect of sustainability through a long-term service offer and flexibility in use – our “Multi-Tool”.

TwinTrain-Interface

Detection of the condition of locomotives, wagons and train sets through automated testing of information and control lines.

TwinTrain-Cloud

Central evaluation of test results, determination of fleet and component condition, management of test systems – TwinTrain Cloud as central element of SPHEREA’s digital offer.

SPHEREA Germany – Connected-Maintenance-Tool

Connected Maintenance Tools

The maintenance tools of SPHEREA are connected together and enable an efficient service and maintenance process. This ensures an increasing availability of regional and long-distance public transport vehicles.
